Circuit Diagram

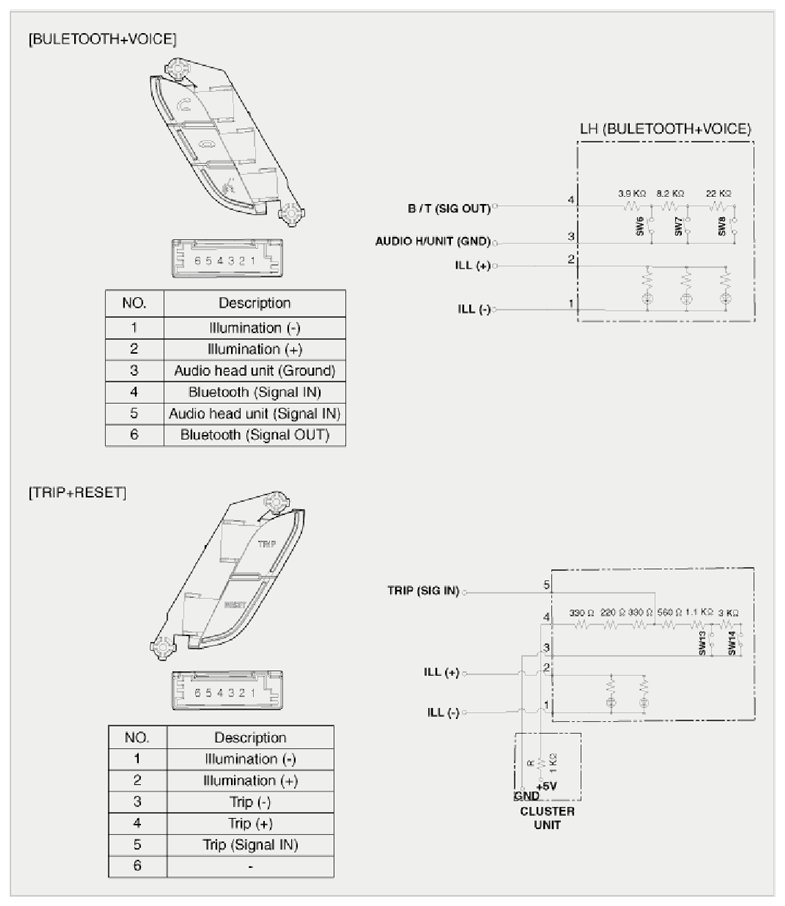

Fig 1: AVN Remote Control Schematic Diagrams (1 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: AVN Remote Control Schematic Diagrams (2 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA

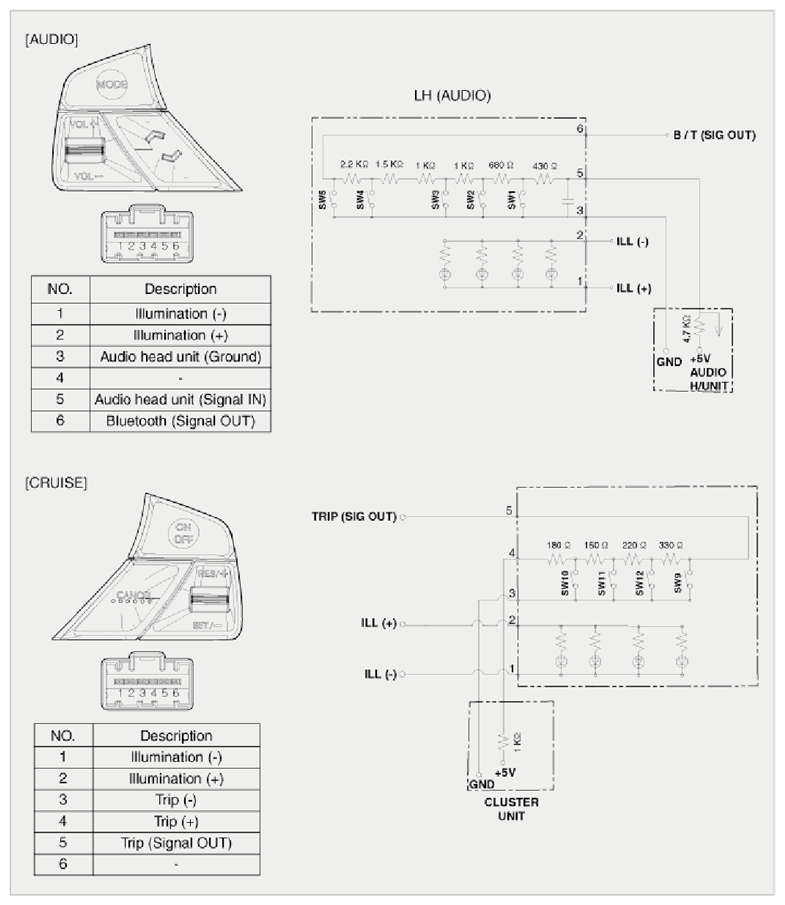

Fig 3: AVN Remote Control Schematic Diagrams (3 Of 3)

Courtesy of HYUNDAI MOTOR AMERICA
