Repair Procedures: Removal

Remove the following items.
1. Air cleaner assembly
  (Refer to "AIR CLEANER ")
2. Battery and battery tray
  (Refer to "BATTERY ")
Disconnect the back up lamp switch connector (A).

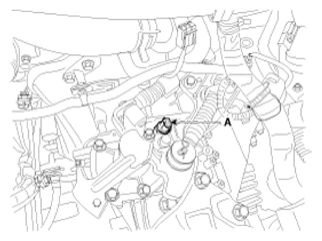

Fig 1: Identifying Back Up Lamp Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the back up lamp switch (A).
Tightening torque:

39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

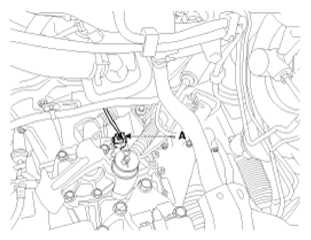

Fig 2: Identifying Back Up Lamp Switch
Courtesy of HYUNDAI MOTOR AMERICA
