Repair Procedures: Inspection

  1. Remove the following items.
    1. Air cleaner assembly

      (Refer to "AIR CLEANER ")

    2. Battery and battery tray

      (Refer to "BATTERY ")

  2. Disconnect the back up lamp switch connector (A).

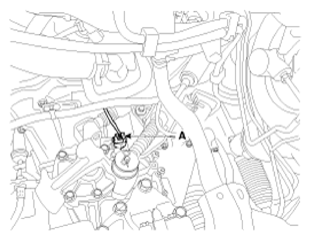

    Fig 1: Identifying Back Up Lamp Switch Connector
    G09150498Courtesy of HYUNDAI MOTOR AMERICA
  3. Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.

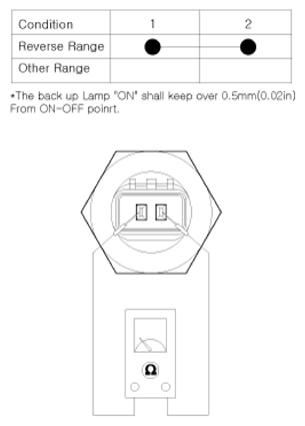

    Fig 2: Checking Continuity Between Backup Lamp Switch Terminals No. 1 And 2
    G09150499Courtesy of HYUNDAI MOTOR AMERICA
