Components Location

WARNING: This page is about a different variant/trim than selected.

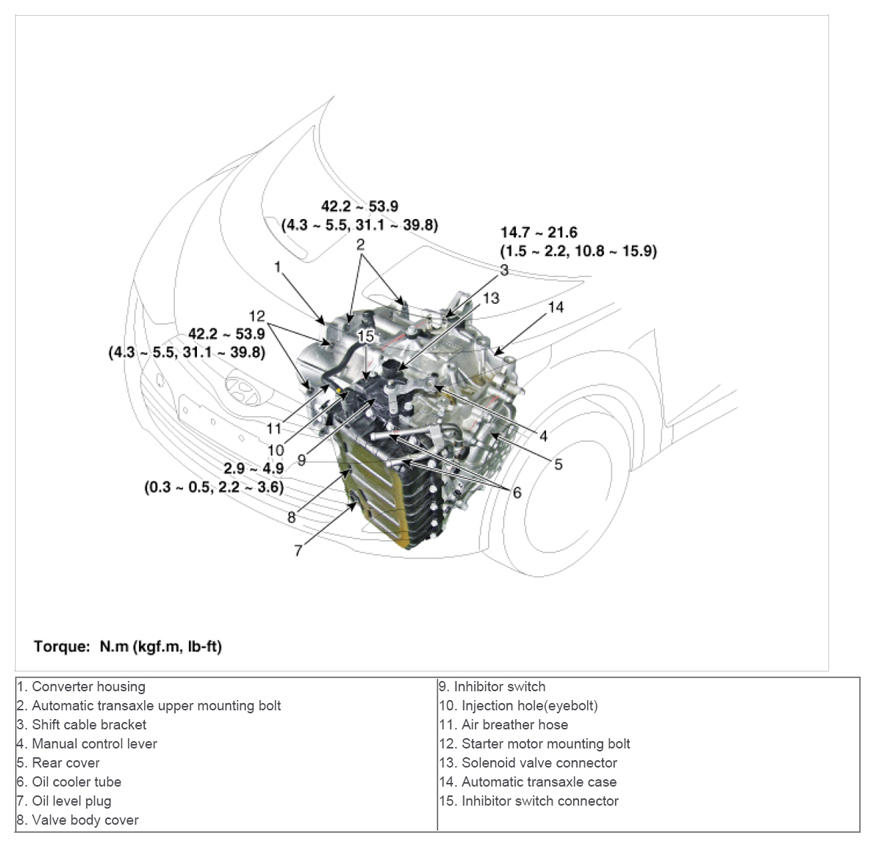

Fig 1: Automatic Transaxle Related Replacement Components With Torque Specifications
G09150526Courtesy of HYUNDAI MOTOR AMERICA
