Section 16 (Automatic Transaxle Control System)
>>
Line Pressure Control Solenoid Valve Loading
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

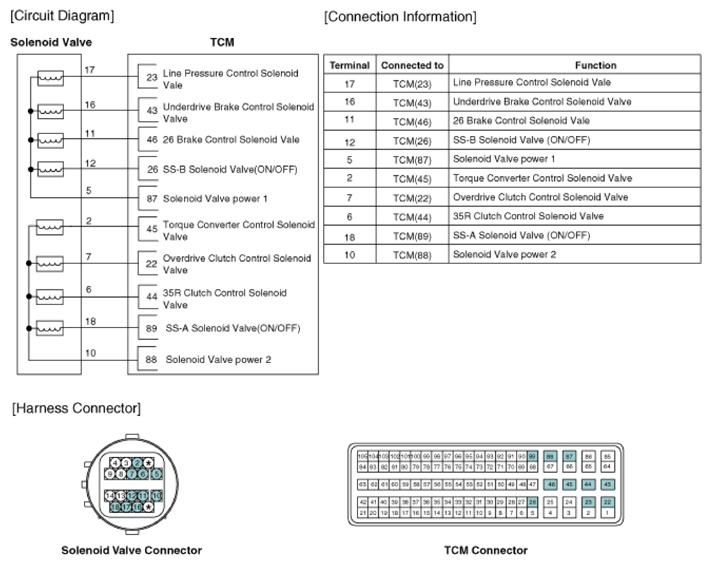

Fig 1: Solenoid Valve And TCM - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
