Veloster Base, Standard Trans
>>
Repair and Diagnosis
>>
External Pages
>>
Different variant/trim
>>
Section 16 (Automatic Transaxle Control System)
>>
Input Speed Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

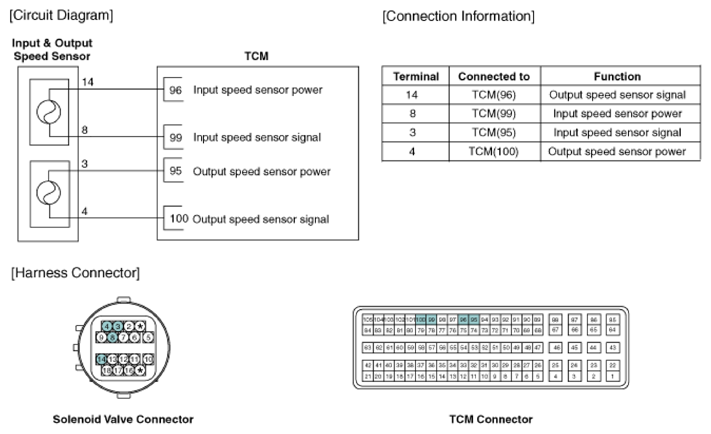

Fig 1: Input & Output Speed Sensor And TCM - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
