Circuit Diagram

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

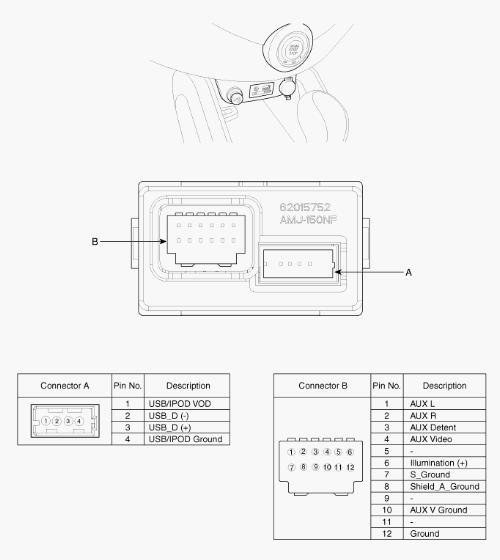

Fig 1: Multimedia Jack Schematic
G08811484Courtesy of HYUN
