External Amplifier

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remover the assistant seat.

    (Refer to the "FRONT SEAT ")

  2. Disconnect the external amplifier connector.
  3. Loosen a bolt and 3 nuts, then remove the external amplifier (A).

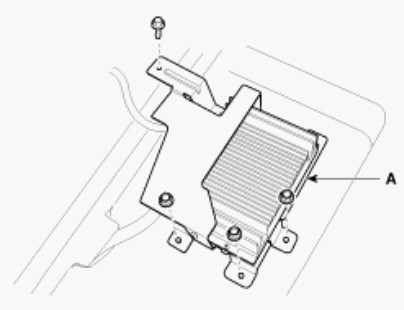

    Fig 1: Identifying External Amplifier
    G08811451Courtesy of HYUN
