Repair procedures: Inspection

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console lamp (map lamp) assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
[Overhead console]

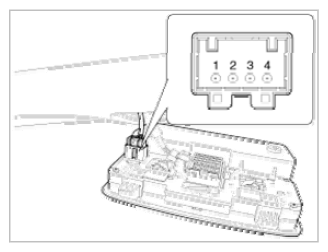

Fig 1: Identifying Overhead Console Lamp Terminals
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Overhead Console Lamp - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

[Map lamp]

Fig 3: Identifying Map Lamp Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Overhead Console Lamp - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Map Lamp Terminal Continuity Chart
Courtesy of HYUNDAI MOTOR AMERICA
