Repair procedures: Removal

WARNING: This page is about a different car, the 2012 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate center trim.

    (Refer to the TAIL GATE )

  3. Loosen 4 nuts and remove the rear garnish assembly after disconnecting the connector.
  4. Loosen 5 screws and remove the garnish cover (A).
    Fig 1: Identifying Garnish Cover With Mounting Screws
    G08811833Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen 4 screws and remove the high mounted stop lamp (A).

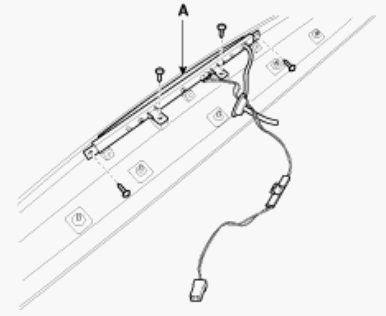

    Fig 2: Identifying High Mounted Stop Lamp With Mounting Screws
    G08811834Courtesy of HYUNDAI MOTOR AMERICA
