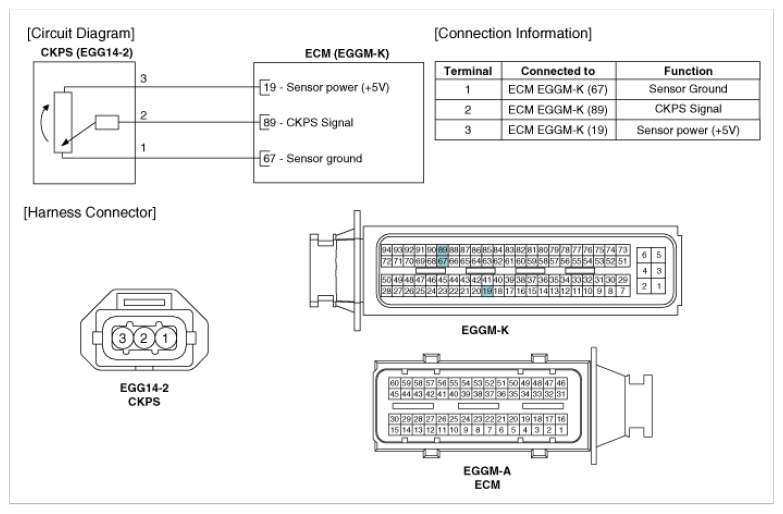

Home >> Hyundai >> 2013 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - Non-Turbo >> Crankshaft Position Sensor (CKPS) >> Schematic Diagrams >> Circuit Diagram >> ISG
