Repair Procedures: Removal

Remove the under covers (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Identifying Under Covers
Courtesy of HYUNDAI MOTOR AMERICA
Drain engine oil.
Using the SST (09215-3C000) and remove the oil pan.

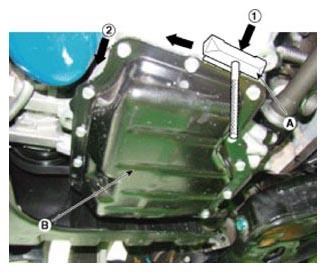

Fig 2: Removing Oil Pan Using SST
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of arrow.
- After tapping the SST with a plastic hammer along the direction of arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
- Do not turn over the SST abruptly without tapping. It be result in damage of the SST.
