Repair Procedures: Installation

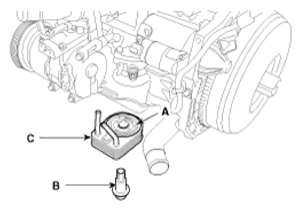

Apply a light coat of engine oil to the oil cooler packing surface (A), and then install the oil cooler (C) with fix bolt (B).
Tightening torque:

50.0 ~ 55.8 N.m (5.1 ~ 5.7kgf.m, 36.8 ~ 41.2 lb-ft)

Fig 1: Identifying Oil Cooler, Packing Surface And Fix Bolt
Courtesy of HYUNDAI MOTOR AMERICA

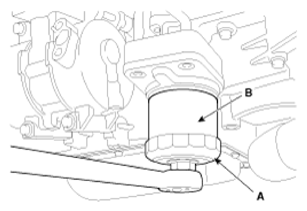

Install the oil filter (A) with the SST (09263-2E000, the oil filter wrench).
Tightening torque:

11.7 ~ 15.6 N.m (1.2 ~ 1.6kgf.m, 8.6 ~ 11.5 lb-ft)

Fig 2: Installing Oil Filter Using Wrench
Courtesy of HYUNDAI MOTOR AMERICA

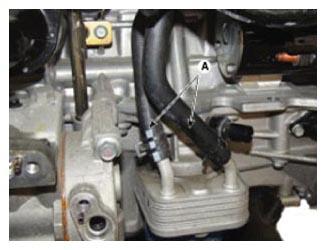

Install the oil cooler (A).

Fig 3: Identifying Oil Cooler
Courtesy of HYUNDAI MOTOR AMERICA
Fill the radiator with coolant and check for leaks.
