Repair Procedures - Turbo: Removal

  1. Disconnect the battery (-) terminal (A) and then (+) terminal (B).

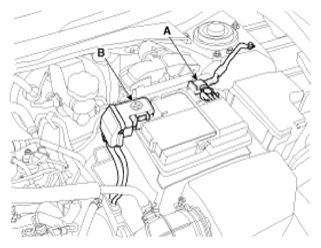

    Fig 1: Identifying Battery Terminals
    G09150305Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the air duct and air cleaner assembly.

    (Refer to "AIR CLEANER ")

  3. Remove the battery mounting bracket and the insulation pad, and then remove the battery (A).

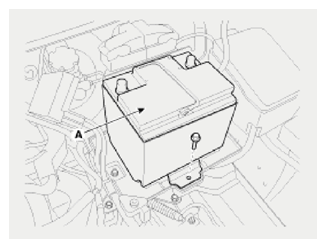

    Fig 2: Identifying Battery
    G09150306Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the ECM connector (A), and then remove ECM (B) after removing the bolts/nut.
  5. Remove the battery tray (C) after removing the bolts.

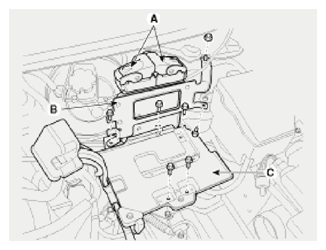

    Fig 3: Identifying ECM, Connector And Battery Tray
    G09150307Courtesy of HYUNDAI MOTOR AMERICA
