Repair Procedures - Turbo: Removal

  1. Disconnect the battery negative terminal.

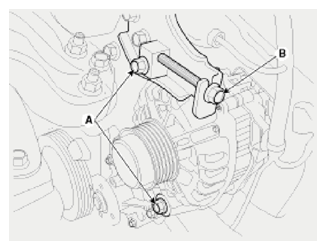

  2. Loosen the mounting bolts (A) and then, turn the adjusting bolt (B) clockwise to loosen tension.
    Fig 1: Identifying Mounting And Adjusting Bolts
    G09150290Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the drive belt (A).
    Fig 2: Identifying Drive Belt
    G09150291Courtesy of HYUNDAI MOTOR AMERICA

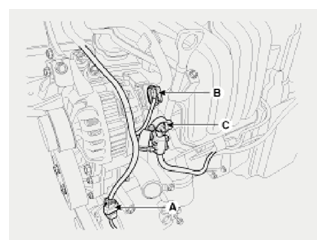

  4. Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable from alternator "B" terminal (C).
    Fig 3: Identifying Air Compressor, Alternator Connector And Terminal
    G09150292Courtesy of HYUNDAI MOTOR AMERICA

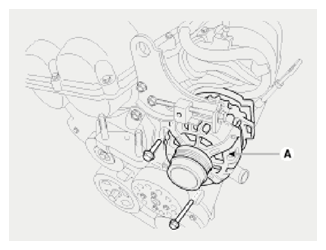

  5. Remove the alternator (A).
    Fig 4: Identifying Alternator
    G09150293Courtesy of HYUNDAI MOTOR AMERICA
