Repair Procedures - Turbo: Disassembly

Remove the rear cover (A) after removing nuts.

Fig 1: Identifying Rear Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the mounting bolts (A) and the brush holder assembly (B).

Fig 2: Identifying Brush Holder Assembly With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the slip ring guide (A) after pulling it.

Fig 3: Removing Slip Ring Guide
Courtesy of HYUNDAI MOTOR AMERICA
Remove the OAD (Overrunning Alternator Decoupler) cap.
NOTE:
- When installing, replace with new OAD cap.
Remove the OAD (Overrunning Alternator Decoupler) pulley (A) using the special tool.

Fig 4: Removing Overrunning Alternator Decoupler Pulley Using Special Tool
Courtesy of HYUNDAI MOTOR AMERICA
Unsolder the 3 stator leads (A).

Fig 5: Identifying Stator Leads
Courtesy of HYUNDAI MOTOR AMERICA

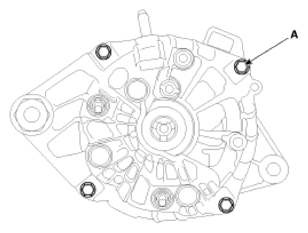

Remove the 4 through bolts (A).

Fig 6: Identifying Through Bolts
Courtesy of HYUNDAI MOTOR AMERICA

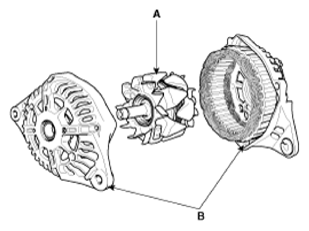

Disconnect the rotor (A) and bracket (B).

Fig 7: Identifying Rotor And Bracket
Courtesy of HYUNDAI MOTOR AMERICA
