Roof Trim Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items.
1. Front seat
  Refer to FRONT SEAT .
2. Rear seat
  Refer to REAR SEAT .
3. Sunvisor
4. Overhead console
5. Garment hook assembly
6. Assist handle
7. Front pillar trim
  Refer to INTERIOR TRIM .
8. Front door scuff trim & Rear door scuff trim
  Refer to INTERIOR TRIM .
9. Center pillar lower trim & Center pillar upper trim
  Refer to INTERIOR TRIM .
10. Luggage side trim
  Refer to INTERIOR TRIM .
11. Rear pillar trim
  Refer to INTERIOR TRIM .
Remove the ECM mirror cover (B).
Disconnect the ECM mirror connector (A).

Fig 1: Disconnecting ECM Mirror Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A) and the mounting clips in the front pillar.

Fig 2: Identifying Connector
Courtesy of HYUNDAI MOTOR AMERICA

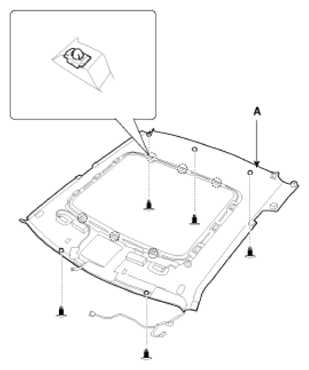

Remove the clips and roof trim (A).

Fig 3: Identifying Clips And Roof Trim
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are plugged in properly.
- Replace any damage clips.
