Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the seat side cover (A).

    (Refer to "FRONT SEAT ")

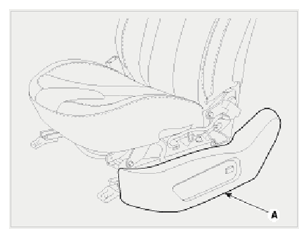

    Fig 1: Seat Side Cover
    G09135092Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the power seat control switch connector.

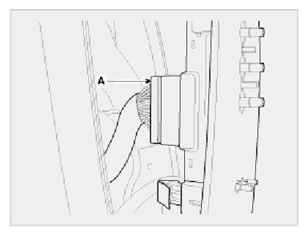

    Fig 2: Power Seat Control Switch Connector
    G09135093Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the power seat control switch (A) after loosening the mounting screw.

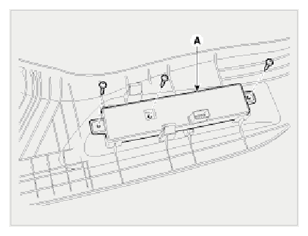

    Fig 3: Power Seat Control Switch
    G09135094Courtesy of HYUNDAI MOTOR AMERICA
