Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim panel.

    (Refer to "FRONT DOOR ")

  3. Disconnect the power door mirror switch connector (A) from the door trim panel.
  4. Remove the power door mirror switch (A), after loosening the screw (3 EA).

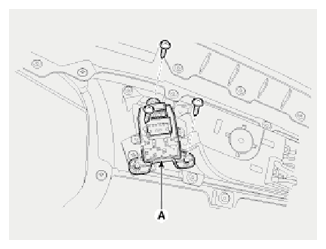

    Fig 1: Power Mirror Door Switch & Mounting Bolt
    G09135161Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: Be careful not to damage the hook when removing the switch module.
