Repair Procedures: Inspection

  1. Disconnect the power door mirror switch module connector from front door trim panel.

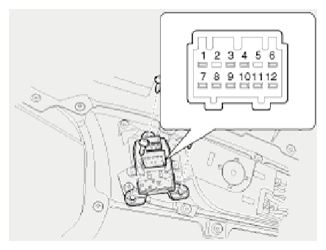

    Fig 1: Power Mirror Switch Connector End View
    G09135159Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for the continuity between terminals of power door mirror switch according to the table.

    [Power Mirror Switch]

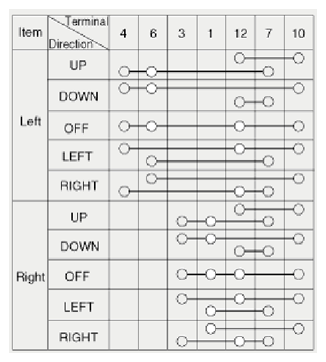

    Fig 2: Power Mirror Switch Continuity Reference Chart
    G09135160Courtesy of HYUNDAI MOTOR AMERICA
