FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

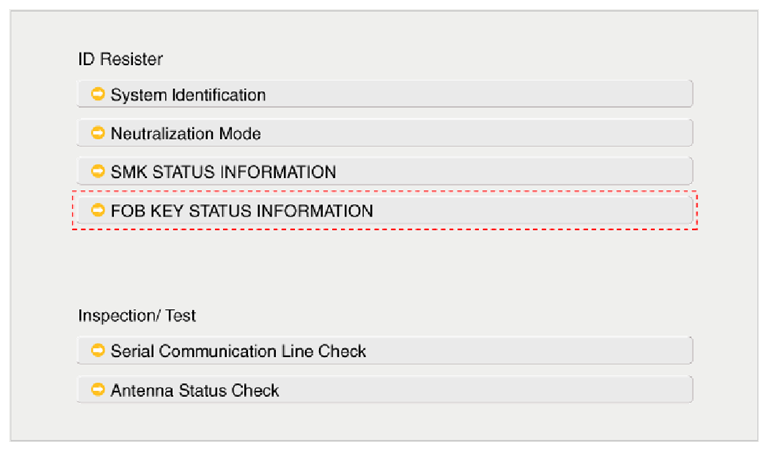

    Fig 1: Display - Fob Key Status Information Selection Screen
    G09134459Courtesy of HYUNDAI MOTOR AMERICA

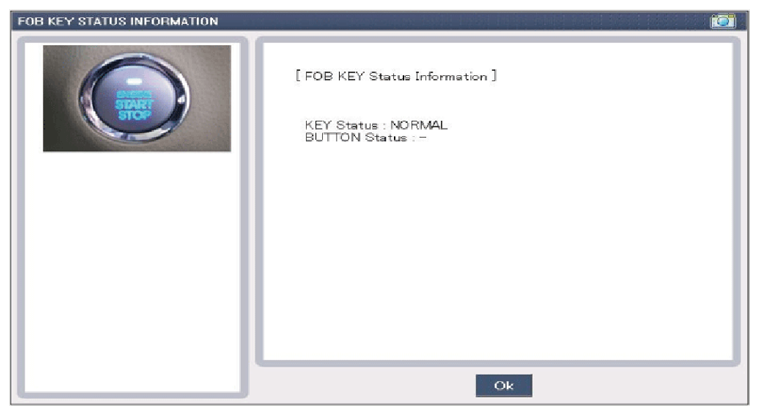

    Fig 2: Display - Fob Key Status Information Screen
    G09134460Courtesy of HYUNDAI MOTOR AMERICA
