Repair Procedures: Removal

Remove the floor console assembly.
(Refer to CONSOLE .)

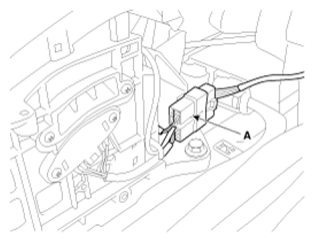

Disconnect the sports mode connector (A).

Fig 1: Identifying Sports Mode Connector
Courtesy of HYUNDAI MOTOR AMERICA

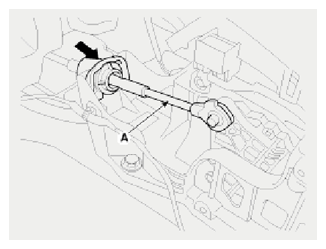

Remove the control cable (A).

Fig 2: Identifying Control Cable
Courtesy of HYUNDAI MOTOR AMERICA

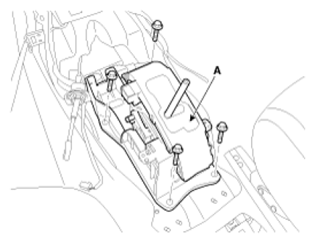

Remove the bolt and then the shift lever assembly (A).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

Fig 3: Identifying Shift Lever Assembly Bolts
Courtesy of HYUNDAI MOTOR AMERICA
