Changing The Shift Cable

Remove the floor console assembly.
(Refer to CONSOLE .
Remove the control cable (A).

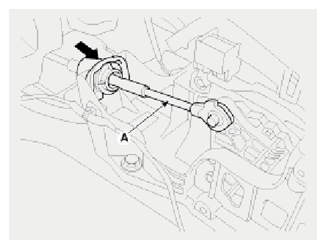

Fig 1: Identifying Control Cable
Courtesy of HYUNDAI MOTOR AMERICA
Remove the retainer (A) and nut (B).
Tightening torque:

11.8 ~ 14.7 N.m (1.2 ~ 1.5 kgf.m, 8.7 ~ 10.8 lb-ft)

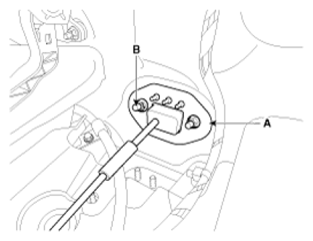

Fig 2: Identifying Retainer And Nut
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cable (B) from the cable bracket (A) on the A/T.
Remove the nut (C) from the manual control lever.
Remove the shift cable by pulling it toward the interior.
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

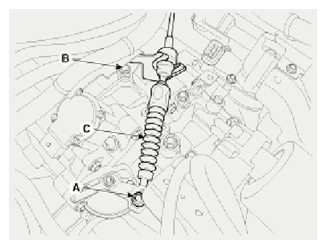

Fig 3: Identifying Cable, Bracket And Nut
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Install the cable after placing the shift lever and the transmission manual control lever in the N position.
- Adjust the control cable.
  (Refer to the CONTROL CABLE .
