Repair Procedures: Adjustment

Adjusting the Control Cable

1. Place the shift lever in the interior, and the transmission manual control lever, to the N position.
2. Connect the shift lever (A) in the interior with the control cable (B).

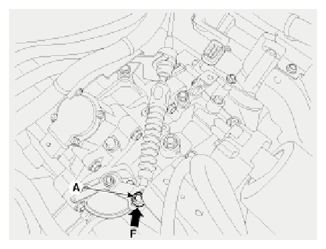

   Fig 1: Locating Shift Lever

   Courtesy of HYUNDAI MOTOR AMERICA
3. Lightly push the shift cable towards F to tighten the cable.
4. Tighten the nut (A) to the specified torque.

   Tightening torque:

   9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

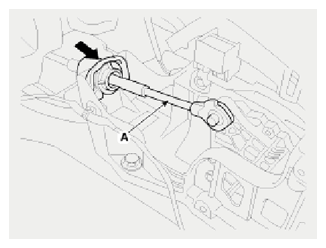

   Fig 2: Locating Control Cable Nut

   Courtesy of HYUNDAI MOTOR AMERICA
