Repair Procedures: Removal

  1. Remove the following parts first:
    1. Air cleaner assembly and air duct

      (Refer to AIR CLEANER

    2. Battery and tray

      (Refer to the CHARGING SYSTEM .

    3. ECM (Refer to the ENGINE CONTROL MODULE (ECM) .
    NOTE: Place the gear shift lever and manual control lever to the N position when performing maintenance on the inhibitor switch.
  2. Disconnect the inhibitor switch connector (A).

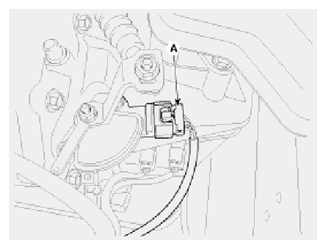

    Fig 1: Identifying Inhibitor Switch Connector
    G09135546Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the shift cable mounting nut (A).

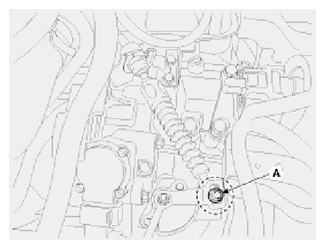

    Fig 2: Identifying Shift Cable Mounting Nut
    G09135548Courtesy of HYUNDAI MOTOR AMERICA
  4. Loosen the nut (A), and then remove the manual control lever (B).
  5. Loosen the mounting bolt, and then remove the inhibitor switch (C).

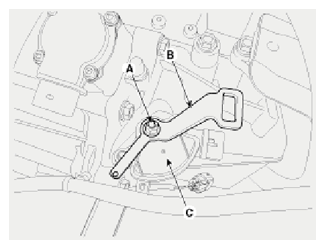

    Fig 3: Identifying Inhibitor Switch, Manual Control Lever And Nut
    G09135549Courtesy of HYUNDAI MOTOR AMERICA
