Driver Power Window Switch

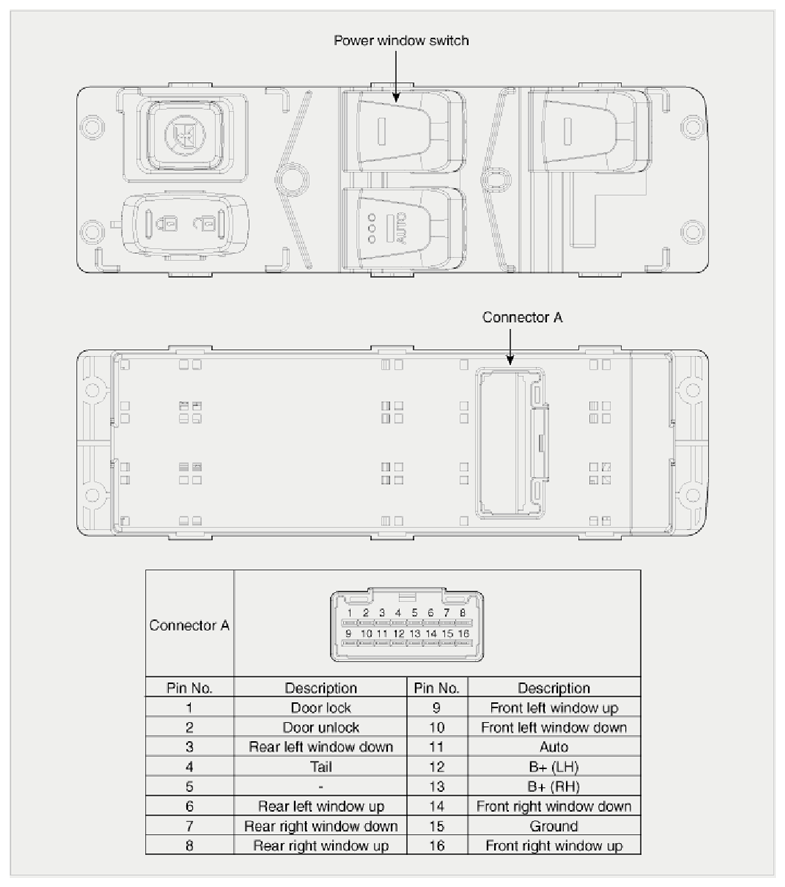

Fig 1: Identifying Power Window Switch And Connector A

G09135178

Courtesy of HYUNDAI MOTOR AMERICA
