Components And Components Location: Components

WARNING: This page is about a different car, the 2012 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

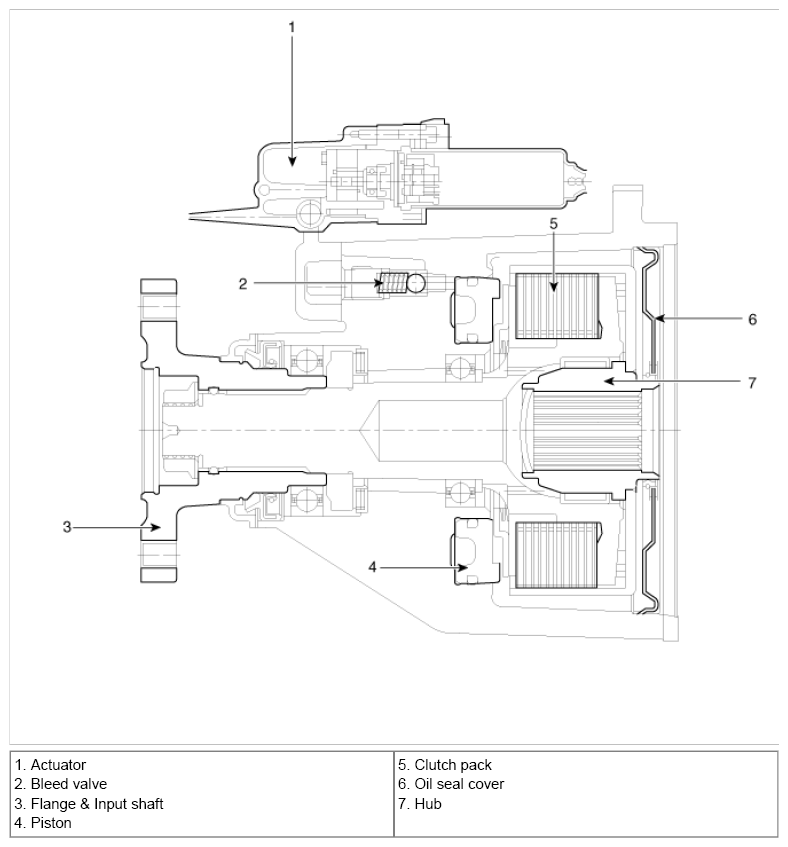

Fig 1: Identifying Coupling Assembly System Components
G07423991Courtesy of KIA MOTORS AMERICA, INC.
