Repair Procedures: Inspection

Operate the auto light switch, then check for continuity between terminals of multi-function switch connector.

Fig 1: Identifying Auto Light Switch Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

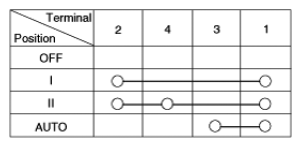

Fig 2: Terminal Continuity Chart

Courtesy of HYUNDAI MOTOR CO.
