Multifunction Switch Connector End View (Remote Control) (M20-R)

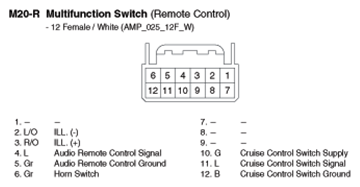

Fig 1: Multifunction Switch Connector End View (Remote Control) (M20-R)

G10728432

Courtesy of HYUNDAI MOTOR AMERICA
