Components and Components Location (M5GF1)
>>
Components
Components and Components Location (M5GF1): Components

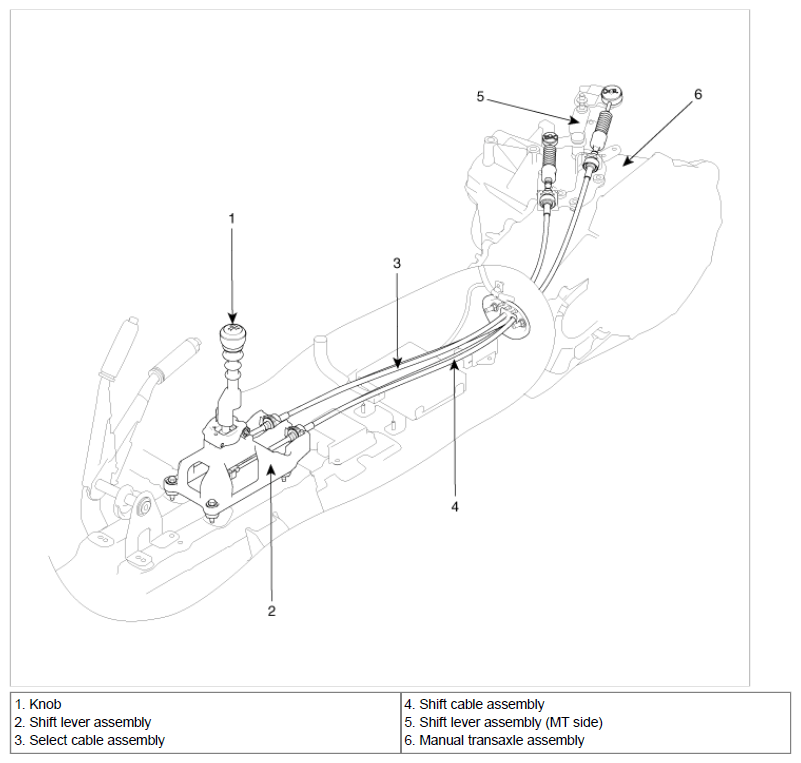

Fig 1: Identifying Manual Transaxle Shift Control Components (M5GF1)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
