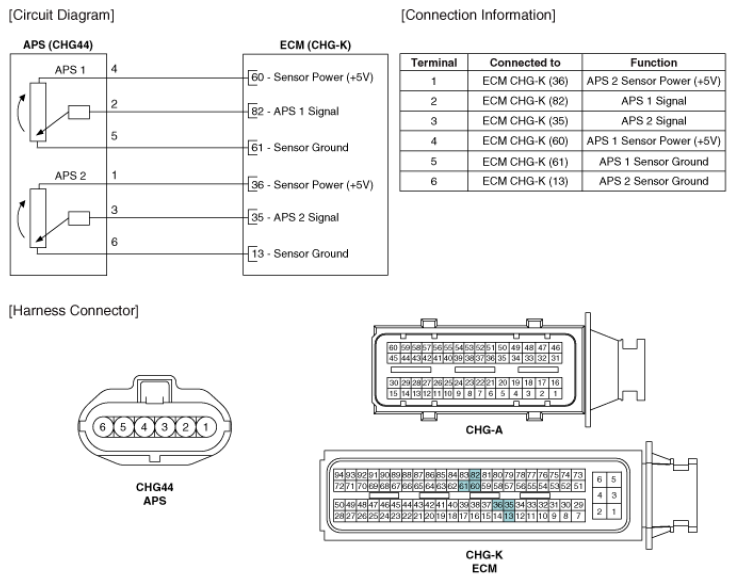

Home >> Hyundai >> 2013 >> Tucson GL, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Accelerator Position Sensor (APS) >> Schematic Diagrams >> Circuit Diagram
