Pressure Sensor Inspection Procedure

WARNING: This page is about a different car, the 2012 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

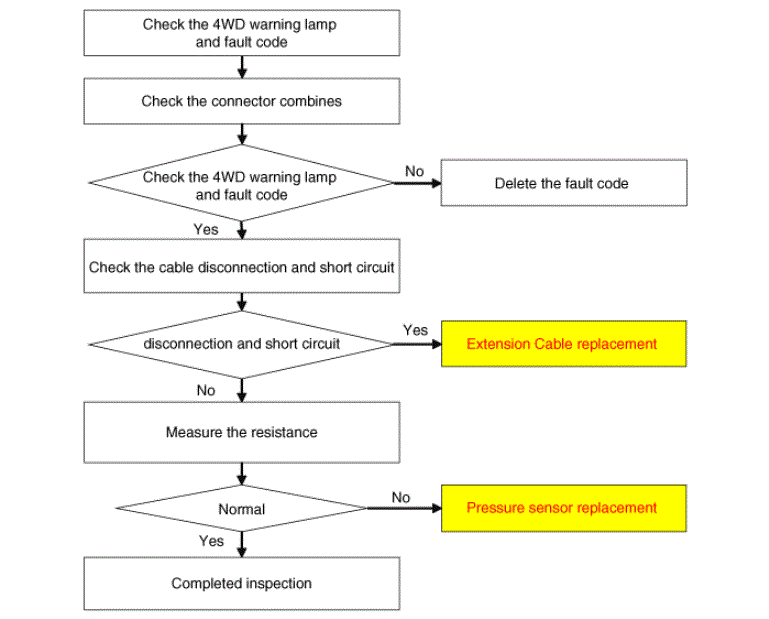

Fig 1: Identifying Pressure Sensor Inspection Diagram
G00534783Courtesy of KIA MOTORS AMERICA, INC.
