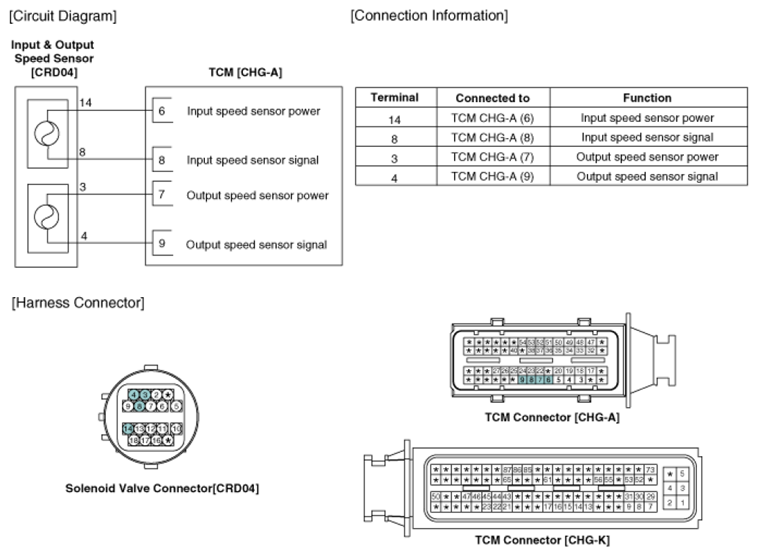

Home >> Hyundai >> 2013 >> Sonata Hybrid Base >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System (HEV) >> Input Speed Sensor >> Schematic Diagrams >> Circuit Diagram
