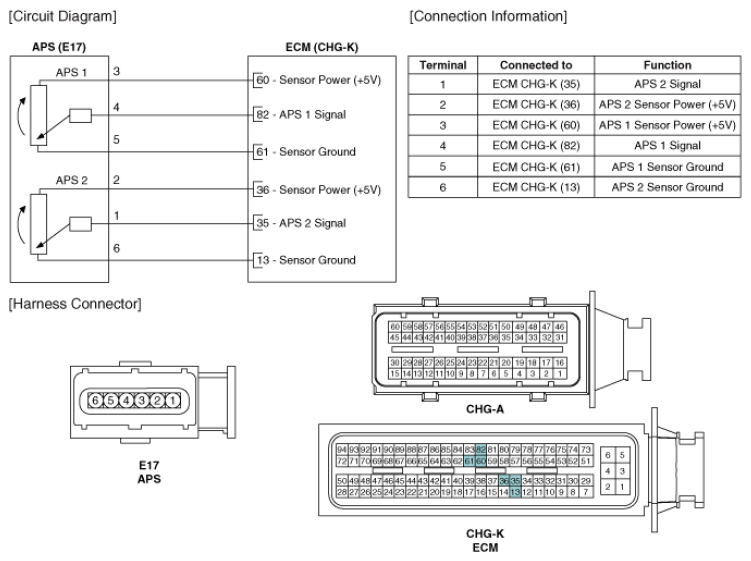

Home >> Hyundai >> 2013 >> Sonata Hybrid Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Accelerator Position Sensor (APS) >> Schematic Diagrams >> Circuit Diagram
