Home >> Hyundai >> 2013 >> Sonata GLS >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 82 (Engine Control System - 2.0L (Except HEV)) >> Electric WGT Control Actuator >> Components And Components Location >> Components

Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

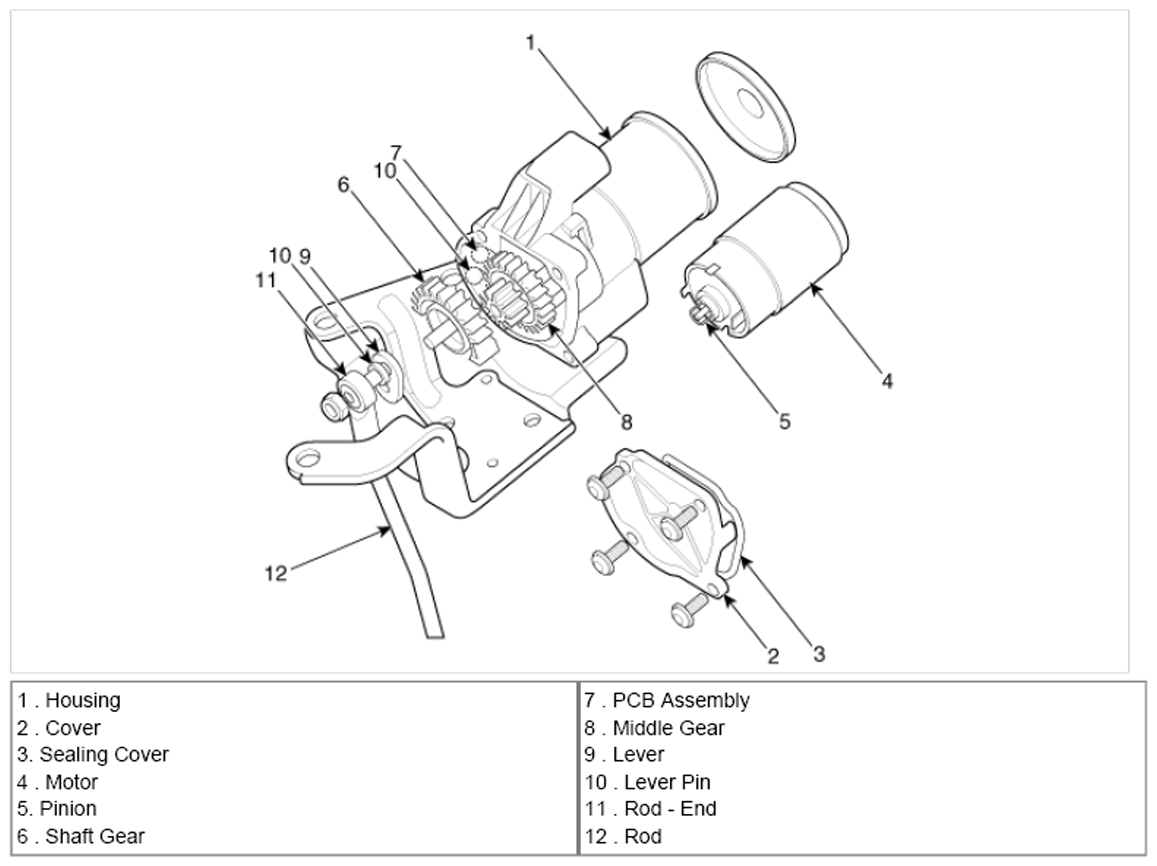

Fig 1: Electric WGT Control Actuator Components Location
G07365436Courtesy of HYUNDAI MOTOR CO.
