Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

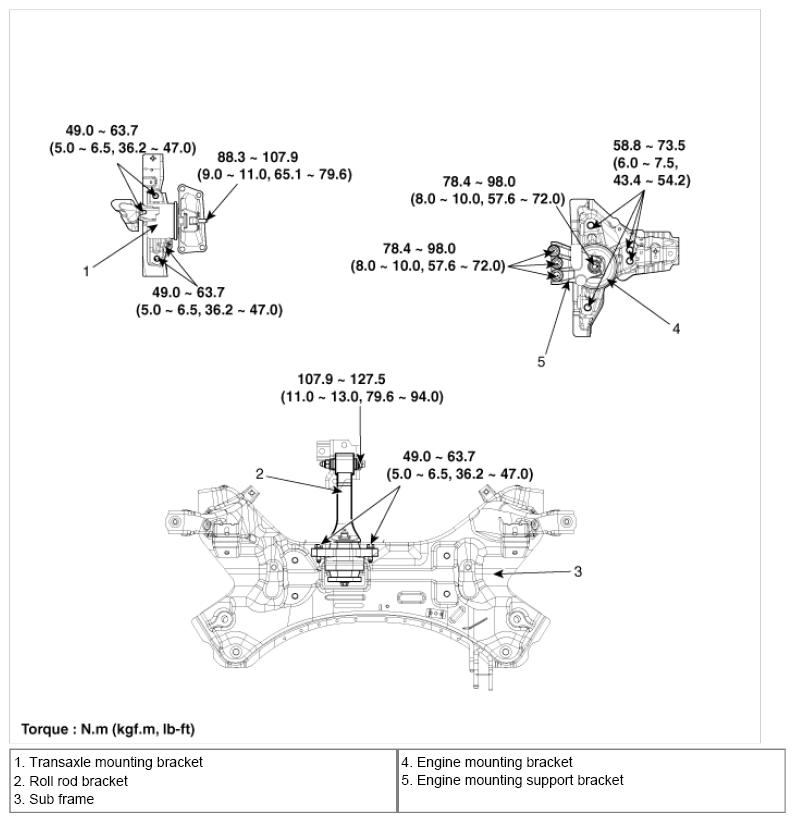

Fig 1: Exploded View Of Engine Mounting And Related Components With Torque Specifications
G07317326Courtesy of HYUNDAI MOTOR CO.
