Components - Revised

WARNING: This page is about a different variant/trim than selected.

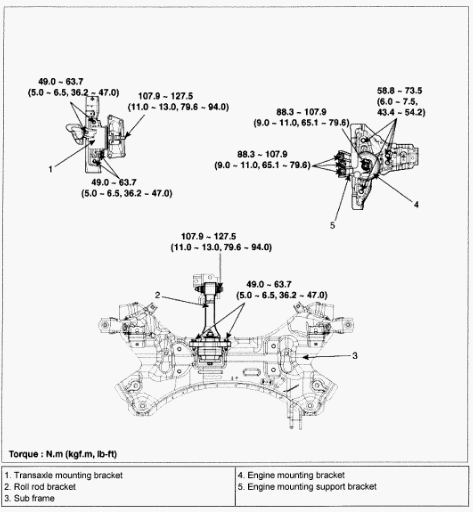

Fig 1: Exploded View Of Engine Mounting And Related Components With Torque Specifications
G00535004Courtesy of HYUNDAI MOTOR CO.
