Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.
NOTE: Mark all wiring and hoses to avoid mis-connection.
  1. Remove the engine cover.
  2. Disconnect the battery negative terminal.
  3. Remove the air cleaner assembly. (Refer to ENGINE AND TRANSAXLE ASSEMBLY )
  4. Remove the RH front wheel (Refer to "WHEEL ").
  5. Remove the under cover. (Refer to ENGINE AND TRANSAXLE ASSEMBLY )
  6. Turn the crankshaft pulley and align its groove with the timing mark of the timing chain cover to set the piston of No. 1 cylinder to the top dead center on compression stroke.
    Fig 1: Identifying Crankshaft Pulley
    G07317354Courtesy of HYUNDAI MOTOR CO.
  7. Disconnect the exhaust OCV (Oil control valve) connector (A) and then remove the wiring from the cylinder head cover.
    Fig 2: Identifying Exhaust Oil Control Valve Connector
    G07317355Courtesy of HYUNDAI MOTOR CO.
  8. Disconnect the PCV (Positive crankcase ventilation) hose (A).
    Fig 3: Identifying Positive Crankcase Ventilation Hose
    G07317356Courtesy of HYUNDAI MOTOR CO.
  9. Disconnect the ignition coil connectors (A) and then remove the wiring protector (B).

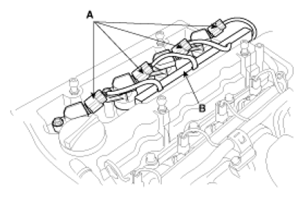

    Fig 4: Identifying Ignition Coil Connectors And Wiring Protector
    G07317357Courtesy of HYUNDAI MOTOR CO.
  10. Remove the ignition coils (A).
    Fig 5: Identifying Ignition Coils
    G07317358Courtesy of HYUNDAI MOTOR CO.
  11. Remove the cylinder head cover (A).

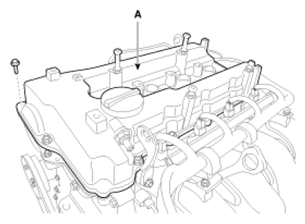

    Fig 6: Identifying Cylinder Head Cover
    G07317359Courtesy of HYUNDAI MOTOR CO.
  12. Remove the water pump drive belt (A).
    Fig 7: Identifying Water Pump Drive Belt Routing
    G07317360Courtesy of HYUNDAI MOTOR CO.
    1. Put the SST (09252-3D100) between the crankshaft pulley and the drive belt.
    2. Rotate the crankshaft pulley clockwise. Then the drive belt is removed.

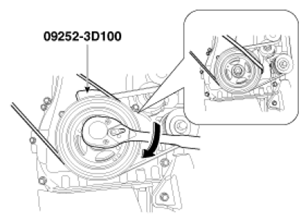

      Fig 8: Rotating Crankshaft Pulley Clockwise
      G07317361Courtesy of HYUNDAI MOTOR CO.
  13. Remove the drive belt.
    1. Insert a stopper pin (B) on the drive belt #1 tensioner after rotating the arm (A) counterclockwise.
    2. Remove the drive belt (D) after rotating the drive belt #2 tensioner arm (C) clockwise.
      Fig 9: Inserting Stopper Pin On #1 Tensioner & Drive Belt Routing
      G07317362Courtesy of HYUNDAI MOTOR CO.
  14. Remove one side bolt (A) and two lower bolts (B) on the A/C compressor.
    Fig 10: Identifying A/C Compressor Side Bolt And Lower Bolts
    G07317363Courtesy of HYUNDAI MOTOR CO.
  15. Remove the A/C compressor bracket (A).
    Fig 11: Identifying A/C Compressor Bracket
    G07317364Courtesy of HYUNDAI MOTOR CO.
  16. Drain the engine oil.
  17. Remove the oil pan (A). Insert the blade of SST (09215-3C000) between the ladder frame and oil pan. Cut off applied sealer and remove the lower oil pan.
    Fig 12: Identifying Oil Pan Removal Directions
    G07317365Courtesy of HYUNDAI MOTOR CO.
    NOTE: Loosen one oil pan bolt near each corner of the oil pan leaving the bolts held in by about 2 threads. Then remove all other pan bolts.
    NOTE:
    • Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of arrow.
    • After tapping the SST with a plastic hammer along the direction of arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
    • Do not turn over the SST abruptly without tapping. It is result in damage of the SST.
    • Be careful not to damage the contact surfaces of ladder frame and lower oil pan.
  18. Set the jack to the edge of ladder frame.
    NOTE: Put the wooden block between ladder frame and jack.
    CAUTION: Be careful not to damage the balance shaft & oil pump module.
  19. Disconnect the ground line (A), and then remove the engine mounting support bracket (B).
    Fig 13: Identifying Ground Line And Engine Mounting Support Bracket
    G07317366Courtesy of HYUNDAI MOTOR CO.
  20. Remove the crankshaft pulley (A) and the idler (B).

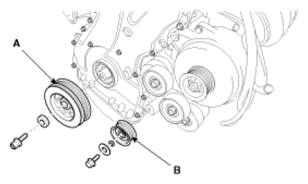

    Fig 14: Identifying Crankshaft Pulley And Idler
    G07317367Courtesy of HYUNDAI MOTOR CO.
  21. Remove the water pump pulley (A) and the dust cover (B).
    Fig 15: Identifying Water Pump Pulley And Dust Cover
    G07317368Courtesy of HYUNDAI MOTOR CO.
  22. Remove the engine support bracket (A).

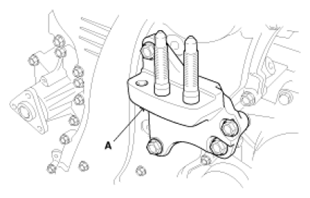

    Fig 16: Identifying Engine Support Bracket
    G07317369Courtesy of HYUNDAI MOTOR CO.
  23. Remove the timing chain cover (A) by gently prying the portions between the cylinder head and cylinder block.
    Fig 17: Identifying Timing Chain Cover
    G07317370Courtesy of HYUNDAI MOTOR CO.
    CAUTION: Be careful not to damage the contact surfaces of cylinder block, cylinder head and timing chain cover.
  24. Make sure that the key of crankshaft is aligned with the mating surface of main bearing cap. As a result of this, the piston of No. 1 cylinder is placed at the top dead center on compression stroke.
  25. Release the ratchet using a thin rod. Compress the piston and then insert a stopper pin (A) into the hole on the ratchet to hold the compressed piston. Remove the timing chain tensioner (B).
    Fig 18: Identifying Timing Chain Tensioner And Stopper Pin
    G07317371Courtesy of HYUNDAI MOTOR CO.
  26. Remove the timing chain tensioner arm (A).
    Fig 19: Identifying Timing Chain Tensioner Arm
    G00538047Courtesy of HYUNDAI MOTOR CO.
  27. Remove the timing chain (A).

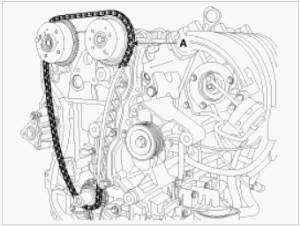

    Fig 20: Identifying Timing Chain
    G00538048Courtesy of HYUNDAI MOTOR CO.
  28. Remove the timing chain guide (A).
    Fig 21: Identifying Timing Chain Guide
    G07317373Courtesy of HYUNDAI MOTOR CO.
  29. Remove the timing chain oil jet (A) and the crankshaft chain sprocket (B).

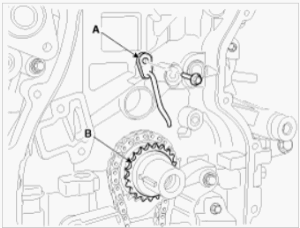

    Fig 22: Identifying Timing Chain Oil Jet And Crankshaft Chain Sprocket
    G00538046Courtesy of HYUNDAI MOTOR CO.
  30. Remove the balance shaft chain.
