Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install the balance shaft chain. (Refer to LUBRICATION SYSTEM )
Install the crankshaft chain sprocket (B) and the timing chain oil jet (A).
Tightening torque:

7.8 ~ 9.8N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2lb-ft)

Fig 1: Identifying Crankshaft Chain Sprocket And Timing Chain Oil Jet
Courtesy of HYUNDAI MOTOR CO.

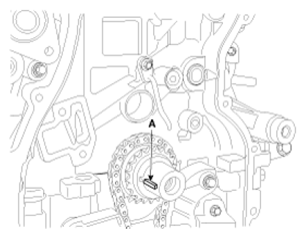

Set the crankshaft so that the key (A) of crankshaft will be aligned with the mating surface of main bearing cap. Put the intake and exhaust camshaft assembly so that the TDC marks (B) of the intake and exhaust CVVT sprockets will be aligned with the top surface of cylinder head. As a result of this, the piston of No. 1 cylinder is placed at the top dead center on compression stroke.

Fig 2: Identifying Crankshaft Key
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Identifying TDC Marks
Courtesy of HYUNDAI MOTOR CO.
Install the timing chain guide (A).
Tightening torque:

9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

Fig 4: Identifying Timing Chain Guide
Courtesy of HYUNDAI MOTOR CO.
Install the timing chain. To install the timing chain with no slack between each shaft (cam, crank), follow the below procedure.
Crankshaft sprocket (A) → Timing chain guide (B) → Intake CVVT sprocket (C) → Exhaust CVVT sprocket (D).

Fig 5: Identifying Crankshaft Sprocket, Timing Chain Guide, Intake CVVT Sprocket And Exhaust CVVT Sprocket
Courtesy of HYUNDAI MOTOR CO.

NOTE: The timing marks of each sprocket should be matched with timing marks (color link) of timing chain when installing the timing chain.

Fig 6: Identifying Timing Marks
Courtesy of HYUNDAI MOTOR CO.

Fig 7: Identifying Timing Marks
Courtesy of HYUNDAI MOTOR CO.
Install the timing chain tensioner arm (A).
Tightening torque:

9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

Fig 8: Identifying Timing Chain Tensioner Arm
Courtesy of HYUNDAI MOTOR CO.
Install the timing chain auto tensioner (B) and remove the stopper pin (A).
Tightening torque:

9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

Fig 9: Identifying Timing Chain Auto Tensioner And Stopper Pin
Courtesy of HYUNDAI MOTOR CO.
After rotating crankshaft 2 revolutions in regular direction (clockwise viewed from front), confirm that the TDC marks (A) on the intake and exhaust CVVT sprockets aligned with the top surface of cylinder head.

Fig 10: Identifying TDC Marks
Courtesy of HYUNDAI MOTOR CO.
Install the timing chain cover.
1. Using a gasket scraper, remove all the old packing material from the gasket surfaces.
2. The sealant locations on chain cover and on counter parts (cylinder head, cylinder block, and ladder frame) must be free of engine oil and etc.
3. Before assembling the timing chain cover, liquid sealant Loctite 5900H or equivalent should be applied on the gap between cylinder head and cylinder block. The part must be assembled within 5 minutes after sealant was applied.
  Bead width: 2.5mm (0.10in.)

  Fig 11: Identifying Timing Chain Cover
  Courtesy of HYUNDAI MOTOR CO.
4. After applying liquid sealant Loctite 5900H or equivalent on the timing chain cover.
  The part must be assembled within 5 minutes after sealant was applied. Continuous bead of sealant should be applied to prevent any path of oil leakage.

  Bead width: 3.0mm (0.12in.)

  Fig 12: Identifying Liquid Sealant Applying Area
  Courtesy of HYUNDAI MOTOR CO.
5. The dowel pins on the cylinder block and holes on the timing chain cover should be used as a reference in order to assemble the timing chain cover to be in exact position.
  Tightening torque:

  Bolts A (M6x25):

  7.8 ~ 9.8N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2lb-ft)

  Bolts B (M8x28):

  18.6 ~ 22.5N.m (1.9 ~ 2.3kgf.m, 13.7 ~ 16.6lb-ft)

  Fig 13: Identifying Cylinder Block Dowel Pins And Holes
  Courtesy of HYUNDAI MOTOR CO.

  CAUTION: The engine starting or pressure tests should not be performed within 30 minutes after the timing chain cover was assembled.

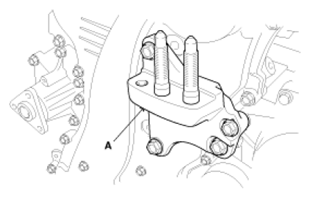

Install the engine support bracket (A).
Tightening torque:

M10 bolts: 39.2 ~ 44.1N.m (4.0 ~ 4.5kgf.m, 28.9 ~ 32.5lb-ft)

M8 bolts: 19.6 ~ 24.5N.m (2.0 ~ 2.5kgf.m, 14.5 ~ 18.1lb-ft)

Fig 14: Identifying Engine Support Bracket
Courtesy of HYUNDAI MOTOR CO.

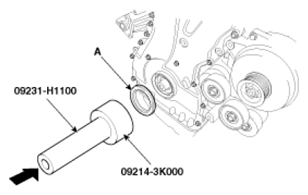

Install the crankshaft front oil seal (A) using SST (09214-3K000, 09231-H1100).

Fig 15: Installing Crankshaft Front Oil Seal Using SST (09214-3K000, 09231-H1100)
Courtesy of HYUNDAI MOTOR CO.
Install the water pump pulley (A) and the dust cover (B).
Tightening torque:

7.8 ~ 9.8N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2lb-ft)

Fig 16: Identifying Water Pump Pulley And Dust Cover
Courtesy of HYUNDAI MOTOR CO.

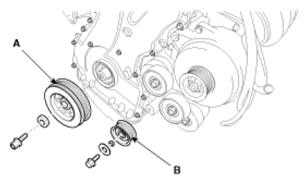

Install the crankshaft pulley (A) and the idler (B).
Tightening torque:

Crankshaft pulley (A):

166.6 ~ 176.4N.m (17.0 ~ 18.0kgf.m, 122.9 ~ 130.1lb-ft)

Idler (B)

53.9 ~ 63.7N.m (5.5 ~ 6.5kgf.m, 39.7 ~ 47.0lb-ft)

Fig 17: Identifying Crankshaft Pulley And Idler
Courtesy of HYUNDAI MOTOR CO.
NOTE:
Use the SST (09231-3D100, 09231-3D200) to install the crankshaft pulley bolt.
1. Remove the service cover (A) on the bottom of the ladder frame and unfasten the two transaxle mounting bolts (B).

  Fig 18: Identifying Service Cover And Mounting Bolts
  Courtesy of HYUNDAI MOTOR CO.
2. Rotate the crankshaft pulley clockwise until a groove (A) on the torsion damper comes in sight.

  Fig 19: Identifying Groove Of Damper
  Courtesy of HYUNDAI MOTOR CO.
3. Adjust the length of the holder (A) so that the front plate of the holder (B) puts in the groove at the closest position.
4. Adjust the angle of the links (C) so that the two transaxle mounting bolts can be fastened to the original mounted holes.

  Fig 20: Identifying Length Of Holder, Angle Of Links And Front Plate Of Holder
  Courtesy of HYUNDAI MOTOR CO.
5. Install the SST (09231-3D100, 09231-3D200) using the two transaxle mounting bolts and spacers. Tighten the bolts and nuts of the holder and links securely.

  Fig 21: Identifying SST (09231-3D100, 09231-3D200)
  Courtesy of HYUNDAI MOTOR CO.
Install the engine mounting support bracket (B) and connect the ground line (A).
Tightening torque:

78.4 ~ 98.0 N.m (8.0 ~ 10.0 kgf.m, 57.6 ~ 72.0 lb-ft)

Fig 22: Identifying Engine Mounting Support Bracket And Ground Line
Courtesy of HYUNDAI MOTOR CO.
Remove the jack from the ladder frame.
Install the oil pan.
1. Using a gasket scraper, remove all the old sealant material from the gasket surfaces.
2. Before assembling the oil pan, liquid sealant Loctite 5900H, Three bond 1217H or equivalent should be applied on oil pan. The part must be assembled within 5 minutes after sealant was applied.
  Bead width: 2.5mm (0.10in.)

  Fig 23: Identifying Gasket Scraper Sealant Applying Area
  Courtesy of HYUNDAI MOTOR CO.
  CAUTION:
  - When applying sealant gasket, sealant must not be protruded into the inside of oil pan.
  - To prevent leakage of oil, apply sealant gasket on the inner threads of the bolt holes.
3. Install the oil pan (A). Uniformly tighten the bolts in several passes.
  Tightening torque

  Bolts B (M9):

  30.4 ~ 34.3N.m (3.1 ~ 3.5kgf.m, 22.4 ~ 25.3lb-ft)

  Bolts C (M6):

  9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

  Fig 24: Identifying Oil Pan
  Courtesy of HYUNDAI MOTOR CO.

  CAUTION: After assembly, wait at least 30 minutes before filling the engine with oil.

  NOTE: Always use a new drain plug gasket.
Install the A/C compressor bracket (A).
Tightening torque:

19.6 ~ 23.5N.m (2.0 ~ 2.4kgf.m, 14.5 ~ 17.4lb-ft)

Fig 25: Identifying A/C Compressor Bracket
Courtesy of HYUNDAI MOTOR CO.
Install one side bolt (A) and two lower bolts (B) on the A/C compressor.
Tightening torque:

Bolt A:

21.6 ~ 32.4N.m (2.2 ~ 3.3kgf.m, 15.9 ~ 23.9lb-ft)

Bolts B:

20.0 ~ 33.0N.m (2.04 ~ 3.36kgf.m, 14.8 ~ 24.3lb-ft)

Fig 26: Identifying Side Bolt And Lower Bolts
Courtesy of HYUNDAI MOTOR CO.
Install the drive belt (D).
1. Rotate the drive belt tensioner arm (C) clockwise moving the tensioner pulley bolt with wrench. After putting the belt on the tensioner pulley, release the tensioner pulley slowly.
  HSG pulley → Tensioner #1 pulley → Crankshaft pulley → Idler → Tensioner #2 pulley
2. Remove a stopper pin (B) on the drive belt #1 tensioner (A).

  Fig 27: Engine Drive Belt Routing
  Courtesy of HYUNDAI MOTOR CO.
Install the water pump drive belt (A).

Fig 28: Identifying Water Pump Drive Belt
Courtesy of HYUNDAI MOTOR CO.

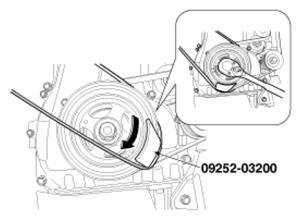

1. Put the SST (09252-03200) between the crankshaft pulley and the drive belt.
2. Rotate the crankshaft pulley clockwise. Then the drive belt is installed.

  Fig 29: Rotating Crankshaft Pulley Clockwise
  Courtesy of HYUNDAI MOTOR CO.
Install cylinder head cover.
1. The hardening sealant located on the upper area between timing chain cover and cylinder head should be removed before assembling cylinder head cover.
2. After applying sealant, it should be assembled within 5 minutes.
  Bead width: 2.5mm (0.10in.)

  Fig 30: Identifying Cylinder Head Cover
  Courtesy of HYUNDAI MOTOR CO.

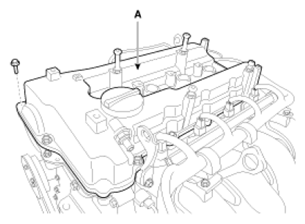

3. Install the cylinder head cover (A) by tightening the bolts as following method.
  Tightening torque

  1st step: 3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3lb-ft)

  2nd step: 7.8 ~ 9.8N.m (0.8 ~ 1.0kgf.m, 5.8 ~ 7.2lb-ft)

  Fig 31: Identifying Cylinder Head Cover
  Courtesy of HYUNDAI MOTOR CO.

  Fig 32: Identifying Cylinder Head Cover Bolts Tightening Sequence
  Courtesy of HYUNDAI MOTOR CO.
  CAUTION:
  - Do not reuse cylinder head cover gasket.
  - The firing and/or blow out test should not be performed within 30 minutes after the cylinder head cover was assembled.
Install the ignition coils (A).
Tightening torque:

3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3lb-ft)

Fig 33: Identifying Ignition Coils
Courtesy of HYUNDAI MOTOR CO.

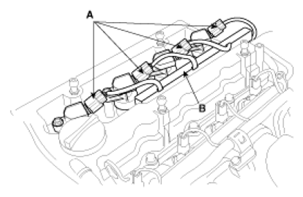

Install the wiring protector (B), and then connect the ignition coil connectors (A).

Fig 34: Identifying Wiring Protector And Ignition Coil Connectors
Courtesy of HYUNDAI MOTOR CO.
Connect the PCV (Positive crankcase ventilation) hose (A).

Fig 35: Identifying Positive Crankcase Ventilation Hose
Courtesy of HYUNDAI MOTOR CO.
Connect the exhaust OCV (Oil control valve) connector (A).

Fig 36: Identifying Exhaust Oil Control Valve Connector
Courtesy of HYUNDAI MOTOR CO.
Install the under cover. (Refer to ENGINE AND TRANSAXLE ASSEMBLY )
Install the RH front wheel. (Refer to "WHEEL ")
Install the air cleaner assembly. (Refer to ENGINE AND TRANSAXLE ASSEMBLY )
Connect the battery negative terminal.
Tightening torque:

4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft)
Install the engine cover.
Add all the necessary fluids and check for leaks. Connect GDS. Check for codes, note, and clear. Recheck.
NOTE:
- Refill engine with engine oil.
- Clean battery posts and cable terminals and assemble (12 Volt only).
- Inspect for fuel leakage.
  - After assemble the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
  - Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.
