Home >> Hyundai >> 2013 >> Sonata GLS >> Repair and Diagnosis >> External Pages >> Different variant/trim >> Section 6 (Engine Timing System (HEV)) >> Timing Chain >> Components And Components Location >> Components

Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

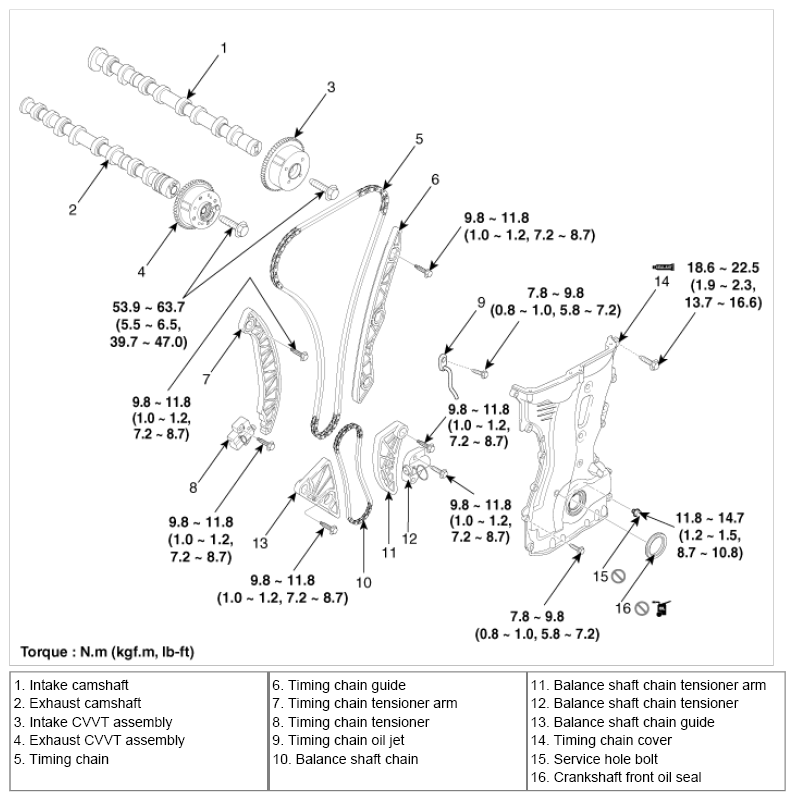

Fig 1: Exploded View Of Timing Chain And Related Components With Torque Specifications
G07317353Courtesy of HYUNDAI MOTOR CO.
