Front Brake Pads

WARNING: This page is about a different variant/trim than selected.

Remove the brake hose mounting bracket bolt (A).

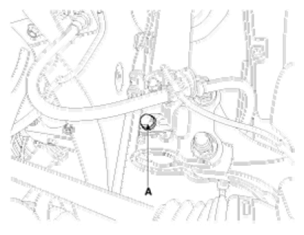

Fig 1: Locating Brake Hose Mounting Bracket Bolt
Courtesy of HYUNDAI MOTOR CO.
Loosen the guide rod bolt (B) and pivot the caliper (A) up out of the way.
Tightening torque:

21.6 ~ 31.4 N.m (2.2 ~ 3.2 kgf.m, 15.9 ~ 23.1 lb-ft)

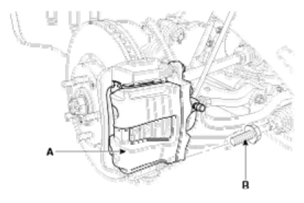

Fig 2: Locating Guide Rod Bolt And Caliper
Courtesy of HYUNDAI MOTOR CO.
Replace pad shim (D), pad retainers (C) and brake pads (B) in the caliper carrier (A).

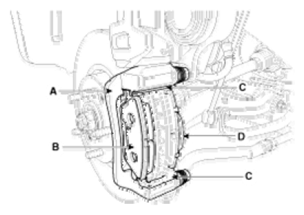

Fig 3: Locating Pad Shim, Pad Retainers, Brake Pads And Caliper Carrier
Courtesy of HYUNDAI MOTOR CO.
