Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Installation is the reverse of removal.
    CAUTION: Use a new washer (A) whenever installing.

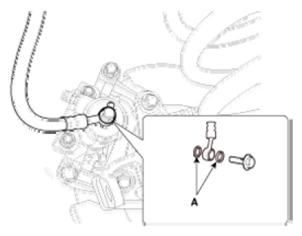

    Fig 1: Locating Washer
    G07318318Courtesy of HYUNDAI MOTOR CO.
  2. After installation, bleed the brake system. (Refer to BRAKE SYSTEM BLEEDING )
  3. Check the spilled brake oil.
