Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

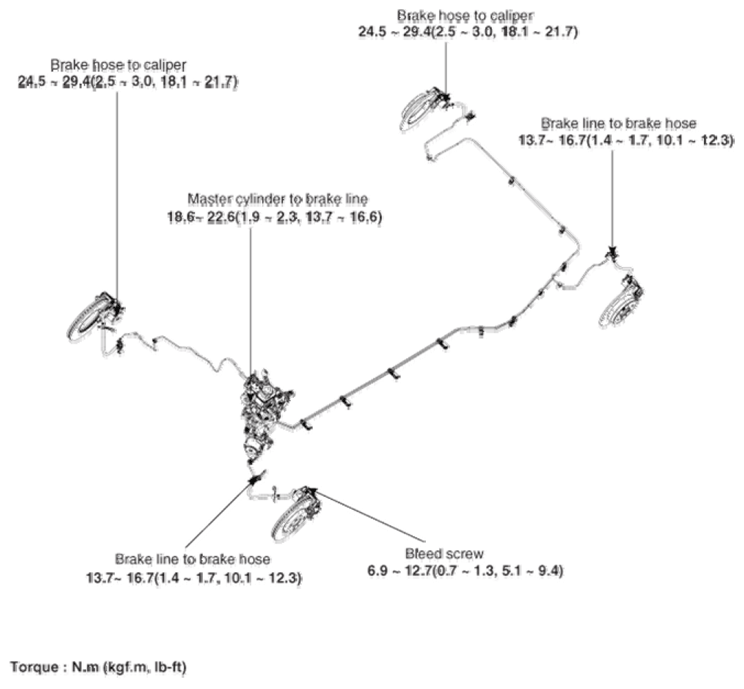

Fig 1: Brake Line Replacement Components With Torque Specifications
G07318313Courtesy of HYUNDAI MOTOR CO.
