Repair Procedures: Inspection: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Ignition "OFF"
  2. Disconnect ambient temperature sensor.
  3. Check the resistance of the ambient temperature sensor between terminals 1 and 2 whether it changes by changing the ambient temperature.

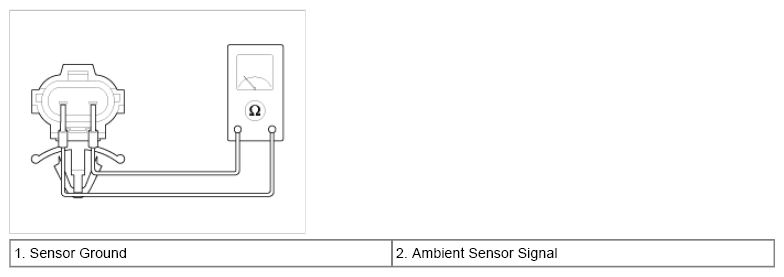

    Fig 1: Checking Resistance Of Ambient Temperature Sensor Between Terminals 1 And 2
    G07319466Courtesy of HYUNDAI MOTOR CO.
