Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: This hybrid system uses a DC 270V voltage system. Be sure to follow safety instructions below. Failure to follow safety instructions may result in serious injury or electrocution (Refer to "SAFETY PRECAUTION ").
  1. Shut off the High Voltage circuit (Refer to "HIGH VOLTAGE SHUTOFF PROCEDURE " ).
  2. Remove the air cleaner assembly and duct (Refer to "INTAKE AND EXHAUST SYSTEM " ).
  3. Disconnect the power cable (A) from the HPCU.
    1. Pull the lever (B) in the direction of the arrow with the hook (C) pressed.
    2. Press the lever (D), and then pull the power cable connector.
  4. Remove the cover (E).
    Fig 1: Locating Power Cable And Cover
    G07319611Courtesy of HYUNDAI MOTOR CO.
    Fig 2: Locating Hook And Lever
    G07319612Courtesy of HYUNDAI MOTOR CO.
  5. Remove the seal cover (A).
  6. Remove the installation bolts (B), than remove the DC fuse (C) from the HPCU.

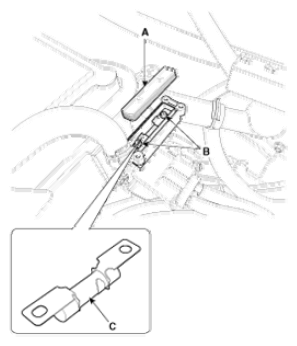

    Fig 3: Locating Seal Cover, Installation Bolts And DC Fuse
    G07319613Courtesy of HYUNDAI MOTOR CO.
