Transaxle Mounting Bracket

Disconnect the earth cable (A).

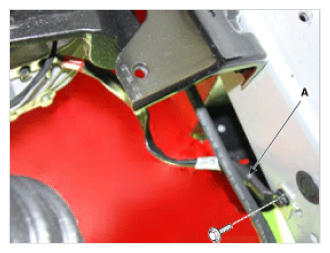

Fig 1: Identifying Earth Cable And Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Install the jack to the transaxle lower.
NOTE: Insert the rubber block between jack and transaxle for the transaxle protect form damage.
Remove the service cover (A).

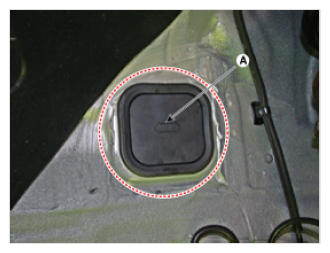

Fig 2: Identifying Service Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the transaxle mounting fixing bolt (A).
Tightening torque:

88.4 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

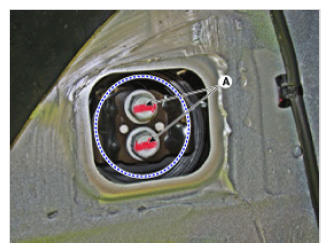

Fig 3: Identifying Transaxle Mounting Fixing Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Remove the transaxle mounting bracket (A).
Tightening torque:

63.7 ~ 83.3 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)

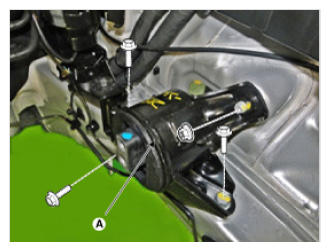

Fig 4: Identifying Transaxle Mounting Bracket And Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
