Hyundai
>>
2013
>>
Santa Fe XL Base
>>
Repair and Diagnosis
>>
External Pages
>>
Different variant/trim
>>
Section 4 (4WD Coupling Assembly)
>>
Pressure Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

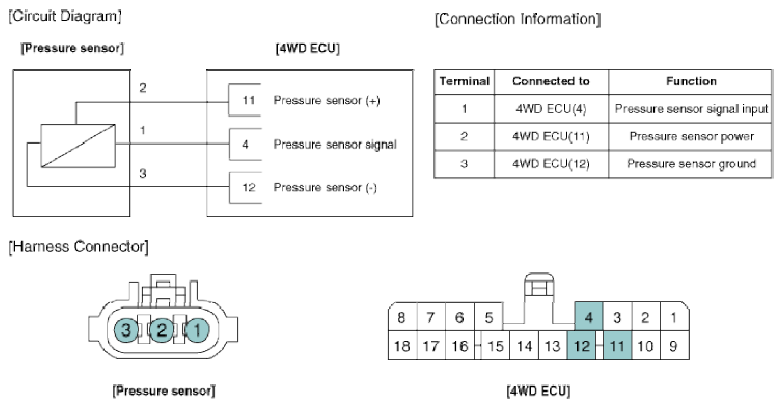

Fig 1: 4 Wheel Drive System - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
