Repair Procedures: Inspection

Information

• Transfer oil should be inspected and refilled every 60000 km (40000 mile)/4 year.

1. Remove the under cover (A).

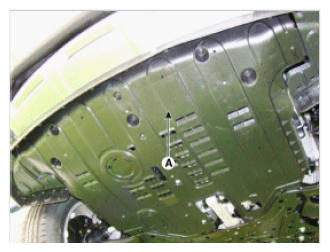

   Fig 1: Identifying Under Cover

   Courtesy of HYUNDAI MOTOR AMERICA

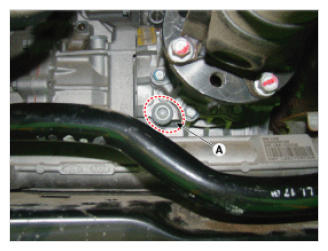

2. Remove the oil filler plug (A).
   Fig 2: Identifying Oil Filler Plug

   Courtesy of HYUNDAI MOTOR AMERICA
3. Check the oil level.

   Information

   Oil level must be up to fill the hole, if not, add oil until it runs over.

   Fig 3: Identifying Oil Level

   Courtesy of HYUNDAI MOTOR AMERICA
4. Install the oil filler plug with new gasket.

   Tightening torque:

   39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)

5. Install the under cover.

   Tightening torque:

   7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 lb-ft)
