Repair Procedures: Removal

Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

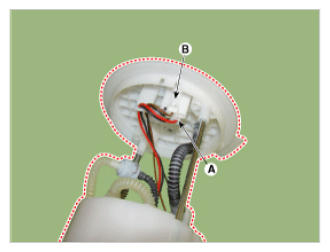

Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

Fig 1: Identifying Electric Pump Wiring Connector And Fuel Sender Connector
Courtesy of HYUNDAI MOTOR AMERICA

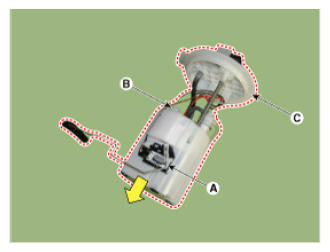

Remove the fuel sender (A) after releasing the fix hook.
Remove the fixing clip, and then disconnect the fuel feed tube quick-connector (B).
Remove the head assembly (C) after releasing the fixing hooks.

Fig 2: Identifying Fuel Sender, Fuel Feed Tube Quick-Connector And Head Assembly
Courtesy of HYUNDAI MOTOR AMERICA

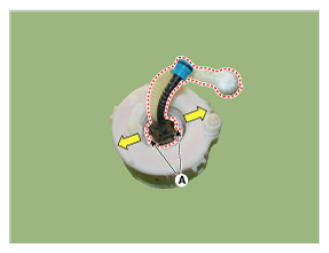

Remove the reservior-cup (A) after releasing the fixing hooks.

Fig 3: Identifying Reservior-Cup
Courtesy of HYUNDAI MOTOR AMERICA

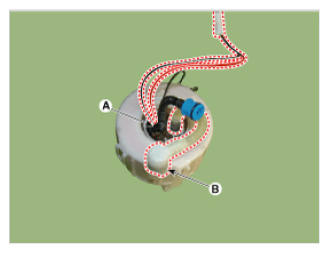

Remove the cap (A), and then remove the assist pump (B).

Fig 4: Identifying Cap And Assist Pump
Courtesy of HYUNDAI MOTOR AMERICA

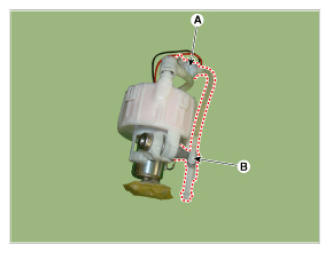

Disconnect the ground cable (A).
Remove the fuel pressure regulator (B) after releasing the fixing hooks.

Fig 5: Identifying Ground Cable And Fuel Pressure Regulator
Courtesy of HYUNDAI MOTOR AMERICA

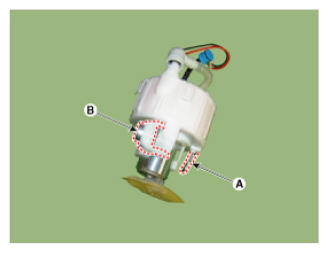

Disconnect the ground cable connector (A) and the fuel pump tube cap (B).

Fig 6: Identifying Ground Cable Connector And Fuel Pump Tube Cap
Courtesy of HYUNDAI MOTOR AMERICA

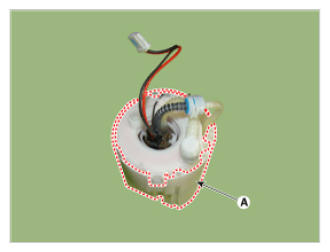

Separate the electric pump motor from the fuel filter after releasing the fixing hooks (A).

Fig 7: Separating Electric Pump Motor From Fuel Filter After Releasing Fixing Hooks
