Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

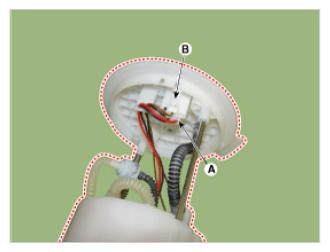

    Fig 1: Identifying Electric Pump Wiring Connector And Fuel Sender Connector
    G09267538Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the fuel sender (A) after releasing the fix hook.
  4. Remove the fixing clip, and then disconnect the fuel feed tube quick-connector (B).
  5. Remove the head assembly (C) after releasing the fixing hooks.

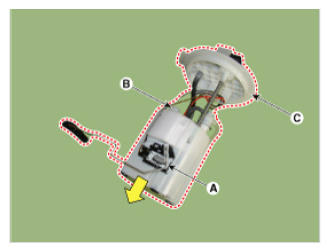

    Fig 2: Removing Head Assembly After Releasing Fixing Hooks
    G09267539Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the reservior-cup (A) after releasing the fixing hooks.

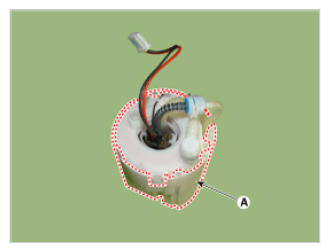

    Fig 3: Identifying Reservoir-Cup
    G09267540Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the fuel pressure regulator (A) after releasing the fixing hooks.

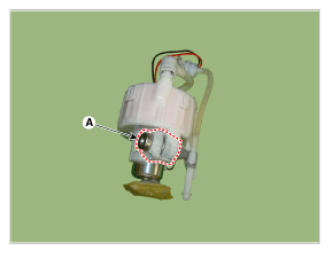

    Fig 4: Identifying Fuel Pressure Regulator
    G09267541Courtesy of HYUNDAI MOTOR AMERICA
